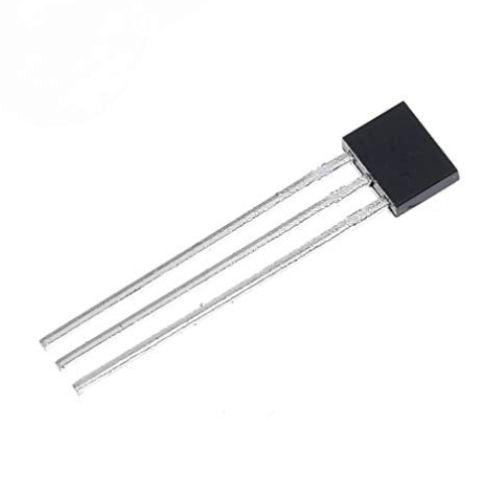

HALL SENSOR 41F for Electric Scooter – High-Precision Magnetic Field Sensor

The HALL SENSOR 41F is an advanced Hall effect sensor designed for electric scooters, e-bikes, motor controllers, and automation systems. It detects magnetic fields and converts them into electronic signals, making it crucial for speed sensing, throttle control, motor feedback, and security systems.

With fast response time, high accuracy, and stable performance, the HAL SENSOR 41F ensures smooth and efficient operation in electric vehicles and other industrial applications. Its contactless operation provides a long lifespan and minimal maintenance, making it a reliable choice for motor control systems.

Key Features

• High-Sensitivity Hall Effect Sensor – Detects magnetic fields with accuracy.
• Wide Operating Voltage Range – Supports DC 3.5V to 24V power supply.
• Contactless Sensing Technology – Minimizes wear and tear for durability.
• Fast Switching Speed – Enables quick signal detection and response.
• Stable & Reliable Performance – Works efficiently in various temperature conditions.
• Low Power Consumption – Designed for energy-efficient applications.
• Perfect for Electric Scooters – Used in motor controllers, throttle systems, and speed sensing.
• Compact & Lightweight – Easy to install and integrate into existing systems.

Technical Specifications

• Product Name: HAL SENSOR 41F
• Type: Bipolar Hall Effect Sensor
• Operating Voltage: 3.5V – 24V DC
• Output Type: Open-Collector Output
• Magnetic Polarity Sensitivity: North & South Pole Detection
• Switching Speed: High-Speed Response
• Temperature Range: -40°C to 150°C
• Package Type: TO-92 for Compact Design
• Application: Electric Scooters, E-Bikes, Motor Controllers, Industrial Automation

Benefits of Using HAL SENSOR 41F in Electric Scooters

1. Precise Motor Control – Enhances speed accuracy and throttle response.
2. Extended Lifespan – No physical contact, reducing mechanical wear.
3. Energy Efficient – Low power consumption extends battery life.
4. High-Speed Switching – Provides quick feedback for motor controllers.
5. Operates in Extreme Conditions – Functions well in high and low temperatures.
6. Compact Design – Easy integration into electric scooter components.
7. Improves Performance – Ensures efficient motor operation and smooth ride experience.

Why Choose HAL SENSOR 41F for Your Electric Scooter?

• Highly Accurate Magnetic Field Detection
• Low Power Consumption for Battery Efficiency
• Reliable Performance in Various Conditions
• Contactless Operation for Longer Lifespan
• Compact & Lightweight for Easy Installation
• Ideal for Electric Scooters, E-Bikes & Motor Controllers

Applications of HAL SENSOR 41F

The HAL SENSOR 41F is widely used in multiple industries, including:

• Electric Scooters & E-Bikes – Ensures accurate speed and throttle control.
• Throttle & Brake Sensors – Provides smooth acceleration and braking.
• Motor Controllers – Detects rotor position and enhances motor efficiency.
• Industrial Automation – Used in position sensing and automated machinery.
• Security Systems – Works for magnetic detection in locks and sensors.
• Automotive Applications – Helps in ignition timing and speed detection.

The 10A One-Wire Transverter is a specialized DC-DC converter engineered to step down higher voltage inputs from electric scooter batteries to a stable 12V output. This conversion is essential for powering auxiliary components such as headlights, horns, and instrument panels, ensuring they operate efficiently and reliably. The unique one-wire design simplifies installation, making it a preferred choice for electric scooter enthusiasts seeking streamlined electrical solutions.

Key Features

• Wide Input Voltage Range: Accommodates input voltages from 36V to 72V, ensuring compatibility with various electric scooter battery configurations.

• Stable 12V Output: Delivers a consistent 12V output with a maximum current of 10A, suitable for powering multiple accessories simultaneously.

• High Efficiency: Designed for energy efficiency, minimizing power loss during the voltage conversion process.

• Compact and Durable Design: The robust construction ensures longevity and reliable performance even under rigorous conditions.

• Simplified Installation: The one-wire design reduces complexity, facilitating easier and quicker installation compared to traditional converters.

• Robust Protection Mechanisms: Equipped with safeguards against over-voltage, over-current, short-circuiting, and overheating, ensuring the longevity of both the converter and connected devices.

Technical Specifications

• Input Voltage: 36V to 72V DC

• Output Voltage: 12V DC

• Output Current: Up to 10A

• Output Power: Up to 120W

• Conversion Efficiency: Approximately 93%, ensuring minimal energy loss.

• Operating Temperature Range: -40°C to 80°C, suitable for various environmental conditions.

Applications

The 10A One-Wire Transverter is ideal for:

• Electric Scooters: Powering 12V accessories such as headlights, taillights, turn signals, horns, and instrument panels.

• Electric Bicycles: Supplying stable power to lighting systems and electronic displays.

• Electric Rickshaws: Ensuring reliable operation of auxiliary systems requiring 12V power.

• Other Electric Vehicles: Any application requiring a reliable step-down from a higher DC voltage to 12V for auxiliary components.

Installation Guidelines

1. Safety Precautions: Before installation, ensure the scooter is powered off and the battery is disconnected to prevent electrical hazards.

2. Mounting: Securely attach the converter to a stable part of the scooter's frame, preferably in a location that allows for adequate ventilation to aid in heat dissipation.

3. Wiring Connections:

   • Input Side: Connect the input wire of the converter to the main battery terminal, observing correct polarity.
   • Output Side: Connect the output wire to the 12V accessory, ensuring correct polarity.

4. Testing: After all connections are made, reconnect the battery and power on the scooter. Test each 12V accessory to confirm they are receiving power and functioning correctly.

Maintenance Tips

• Regular Inspections: Periodically check the converter and its connections for signs of wear, corrosion, or damage.

• Cleanliness: Keep the converter free from dirt and debris to maintain optimal performance and prevent overheating.

• Secure Connections: Ensure all wiring connections remain tight and secure to prevent power interruptions.

Why Choose the 10A One-Wire Transverter?

Integrating the 10A One-Wire Transverter into your electric scooter ensures that all 12V accessories receive stable and reliable power, enhancing both functionality and safety. Its wide input voltage range, high efficiency, and robust protection features make it a dependable choice for riders seeking to optimize their scooter's electrical system.
